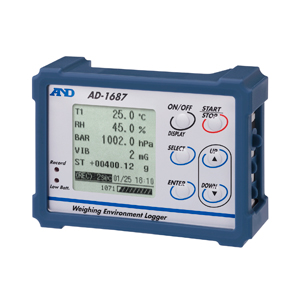

AD-1687 Weighing Environment Logger

Temperature, Humidity, Barometric Pressure, Vibration and Weighing Data - All in One Device

AD-1687 Weighing Environment Logger


  • Unique A&D technology for optimising weighing environment
  • Simultaneous and chronological recording of environmental and weighing data
  • Four kinds of environmental data: Temperature, humidity, barometric pressure, and vibration
  • Large memory capacity of 10,000 data sets
  • Instant data saving to a PC requiring no special software
  • Real-time transmission mode
  • No battery required when connected to either a weighing instrument or a PC
  • Power-saving function when operated on batteries
  • Remaining battery level indicator
  • Three types of RS-232C cables and a USB cable provided as standard
  • Primary data mode to display only two data items of your choosing
  • Trend graph mode to display chronological changes using graphs
  • Interval time setting for environmental data recording
  • Compact, portable dimensions of 127 (W) by 90 (H) by 36 (D) mm
  • IP65 dust and waterproof construction

Additional Information

Data Capacity: Maximum 10,000 sets (including date and time)
Interval time: 1, 2, 5, 10, 15, 20, 30 seconds, 1, 2, 5, 10, 15, 20, 30, 60 minutes
Power supply: Two LR6 (AA) batteries, RS-232C, or USB
Battery life: Approx. 6 months (with measurement interval at 1 minute, alkaline batteries)
